T0R Series

Temp Recessed Value
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

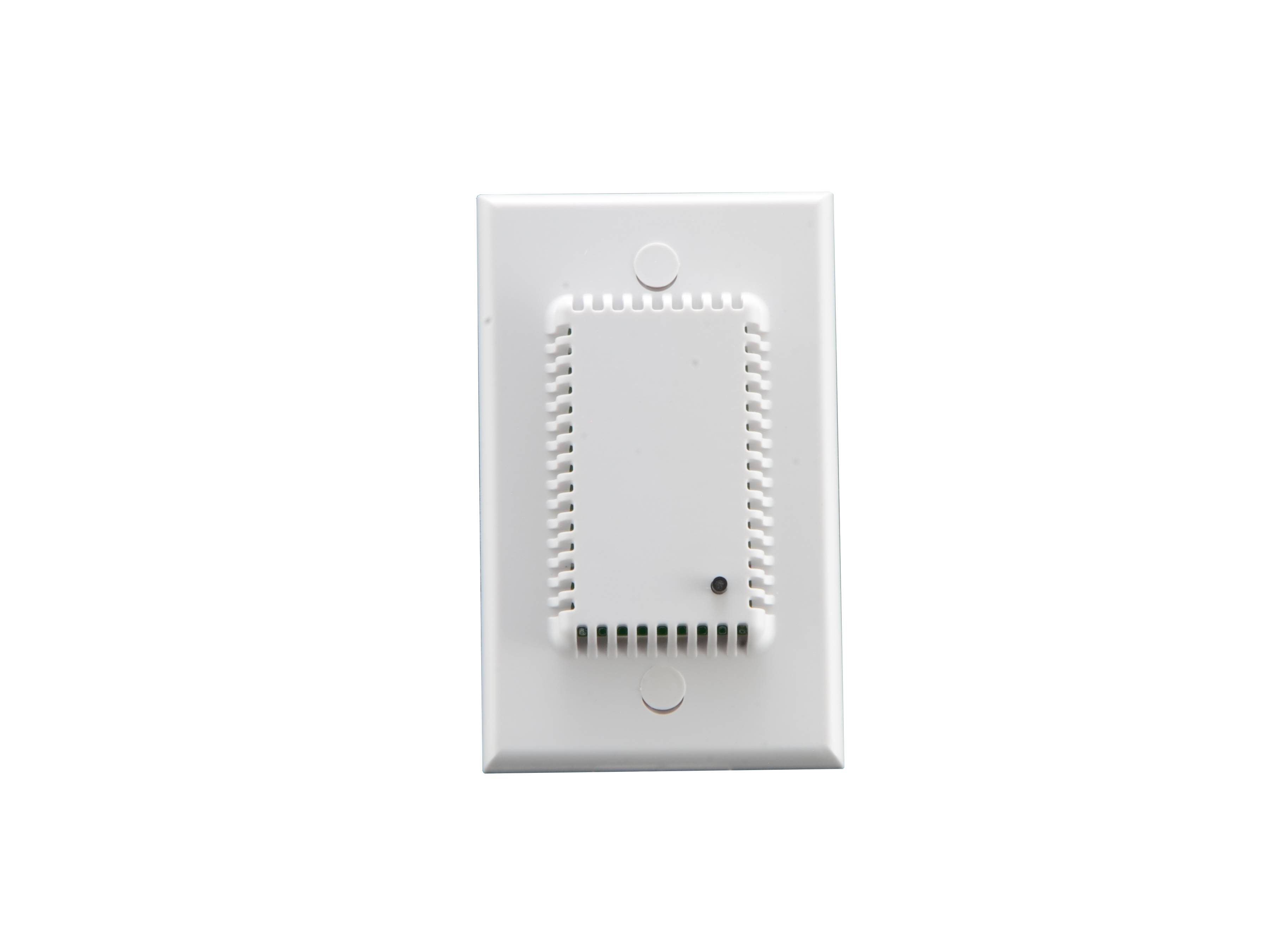

Recessed Temperature Sensors

Recessed Sleek Design Optional Set-Point slider and Override Button Gasket seals element from wall drafts. 45 degree terminals for ease of wireing Buy American Act Certified

Wide range of thermistor options

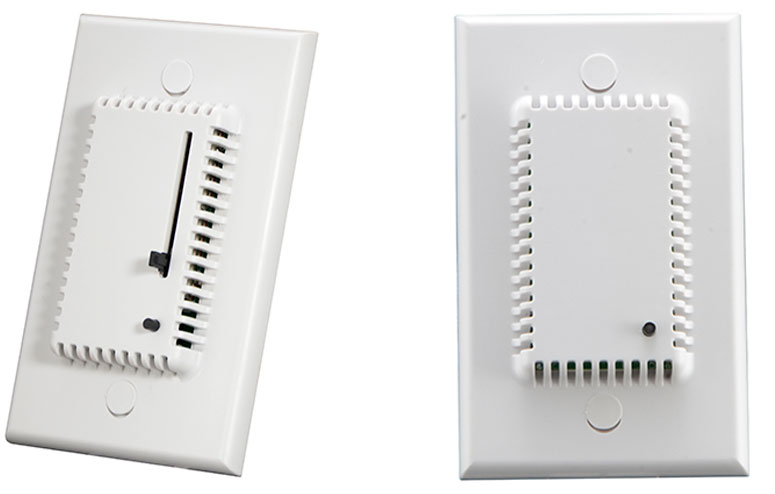

Set-point & override options
Rugged, low-profile design deters vandalism

  • Fits in any standard j-box or low voltage bracket.
  • No exposed screws; unobtrusive tamper resistant design

Description

The T0R series is designed for use in energy management systems in buildings. The flush mount sensor housing accommodates a wide range of thermistor options for sensing room temperature. Optional set-point slider and override button can be added for additional control.

Applications

  • Room temperature measurement for building automation control
  • Low profile tamper resistant design is ideal for schools and public areas

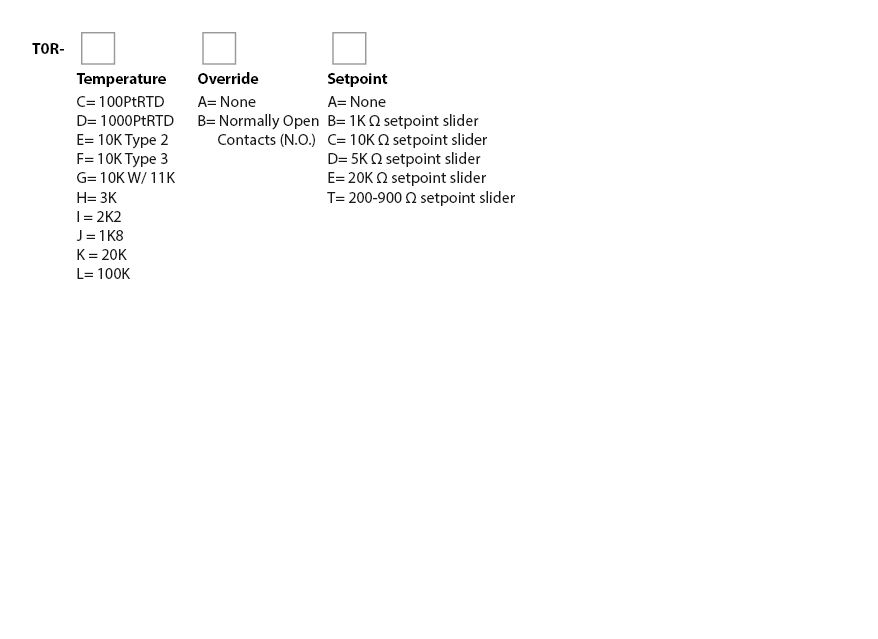

Product Price Quantity
T0R-CAA Room Temperature 100PT RTD
$59.09 /

EA

T0R-DAA Room Temperature 1000PT RTD
$59.09 /

EA

T0R-EAA Room Temperature 10k type 2
$59.09 /

EA

T0R-EAC Room Temperature 10k type 2 w/ 10k slider
$86.79 /

EA

T0R-EBA Room Temperature 10k type 2 w/ override
$66.78 /

EA

T0R-EBC Room Temperature 10k type 2 w/ override w/ 10k slider
$94.59 /

EA

T0R-FAA Room Temperature 10k type 3
$59.09 /

EA

T0R-FBC Room Temperature 10k type 3 w/ override w/ 10k slider
$94.59 /

EA

T0R-GAA Room Temp 10K w/11K shunt
$59.09 /

EA

T0R-GBC Room Temp 10k w/ 11k shunt w/ override w/ 10k slider
$94.59 /

EA

All prices shown are excluding tax unless otherwise specified.
