Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference
Screw, or ram-set to floor or drip panDetects water to prevent costly damageWD-1 is designed for mounting on the floor, drip pans or condensate pansBuy American Act Certified

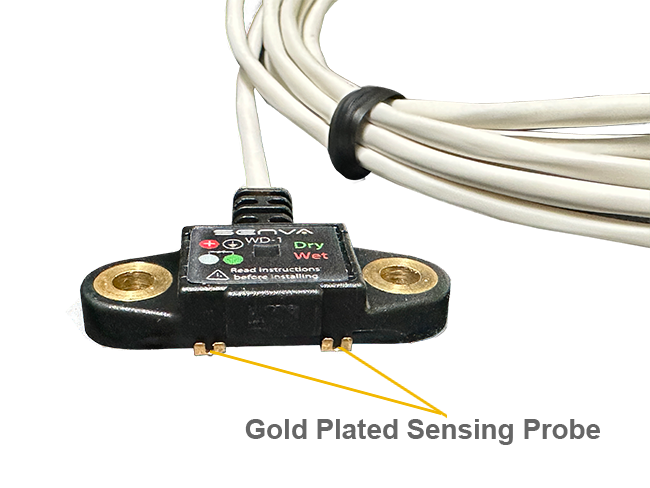

Soild state--no moving parts to fail Gold plated sensing electrodes for long life Floor and wall mount options
Reliable water detection

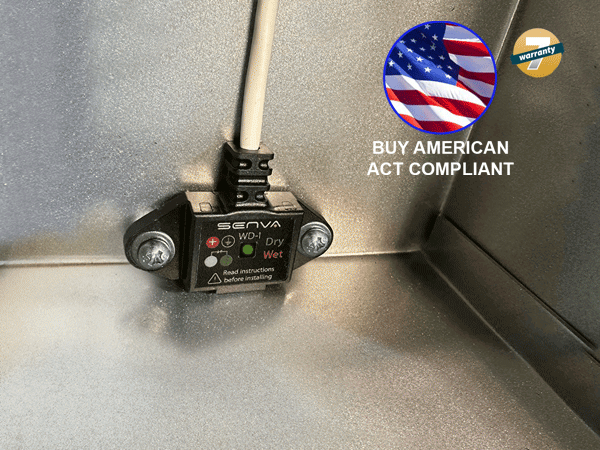

Simple installation—screw, or ram-set to floor or drip pan
Simple operation—no maintenance
Solid-state design… no moving parts to fail
Fully potted for water-proofing… maximum durability

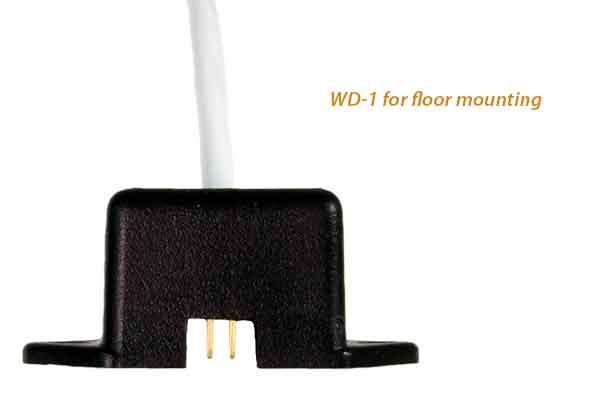

The WD series detects water to prevent costly damage. Unlike float systems, it utilizes solid state detection, so is not prone to mechanical failure. The WD-1 is designed for mounting on the floor, drip pans or condensate pans, as the gold plated sensing electrodes face downwards out the back of the enclosure. The WD-2 housing accommodates mounting to a wall or vertical surface, with the gold plated sensing electrodes angled to the bottom of the enclosure.
Ideal for spot leak detection
Computer rooms, critical equipment, restrooms or commercial kitchens
Monitor condensate pans and drains—turn off equipment when pans reach limit
The datasheet is designed for reference only. Refer to installation instructions that accompany the product and heed all safety instructions. Product improvement is a continuing process at Senva. Changes may occur to products without prior notice.
