TotalSense Series

IAQ/Occupancy Sensor
Higher Reliability, Faster Installation, Superior Accuracy | Sense the Difference

TotalSense CO2/RH/T/TotalSense PIR Wall

Senva Sync makes it easy to update and save settings to multiple devices quickly! Display, AQ ring, and standard designs PIR Motion Detection (optional) - Detect occupancy for quicker and safer ventilation Configure up to ten sensors Tamper proof push-in lock tabs - great for schools! NEW! PID control - program any analog output for local control of dampers or valves RESET monitors are tested and certified for your RESET Air Projects.

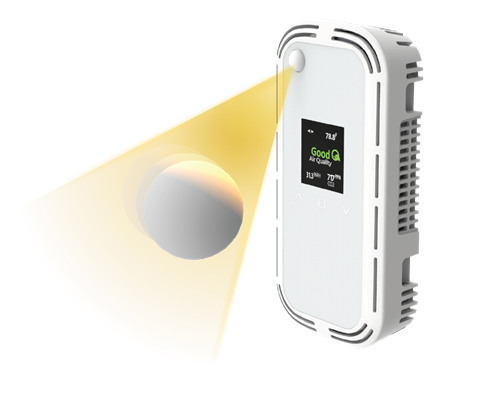

Industry’s first IAQ sensor with PIR motion detection
Ten environmental sensors: PIR, PMx, VOC, CO2, CO, O3, RH, T, ambient light, barometric pressure
Optional OLED to display environmental readings and setpoint
BACnet/Modbus or analog outputs with set-point relay
Pair with an IOTBuddy for BACnet IP or IOT Connection

  • Reduce installation costs with multiple sensors in a standard size enclosure
    • NEW! Save even more using an analog output for local PID control
    • NEW! Dual BACnet/Modbus PLUS analog output version for BAS connection plus local analog control
    • NEW! Configure and update firmware with the SenvaSync app
  • Specify the exact product for your application with made in USA quality
  • Color display and Air Quality Ring for tenant assurance (programmable)
    • NEW! Use PIR occupancy sensor to enable auto-wakeup of display
  • Color display and Air Quality Ring for tenant assurance (programmable)
  • NEW! Use PIR occupancy sensor to enable auto-wakeup of display
  • Initiate ventilation immediately upon occupancy detection for healthier buildings and energy savings
  • Industry-leading temperature and barometric pressure compensated CO2 sensing with non-dispersive infrared sensing element (NDIR), 15+ year life expectancy on CO2 sensing element; ±30ppm, ±3% of reading
  • Capacitive touch buttons make setup and use simple
  • Slim and sleek surface-mount enclosure is tamper-proof and easy to install
  • Field-replaceable sensors ease maintenance
  • Set-point sliders and pushbuttons are also available to meet the requirements for any job
  • 7-year limited warranty / 3 years on CO2 sensor - 2 years on all others

Description

The TotalSense Series provides more data for more advanced ventilation control while drastically reducing installation costs and time on a project. It includes a comprehensive selection of IAQ sensing with carbon dioxide (CO2), relative humidity (RH), and temperature plus options for occupancy detection (PIR), total volatile organic compounds (TVOC), particulate matter (PM), Carbon Monoxide (CO), and ambient light. More than an IAQ sensor, it’s the first fully configurable Indoor Environmental Quality (IEQ) sensor matrix. Motion detection (PIR) can initiate ventilation upon occupancy, providing air exchanges the instant people are present, allowing for cleaner and safer indoor spaces while still saving energy.

Applications

  • Verify the effectiveness of IAQ strategies in post covid environment
  • Energy management/building control
  • Facilitates compliance with ASHRAE 62.1 standard for air quality
  • Contributes toward satisfying Feature A08 and T06 under the WELL Building Standard®
Product Price Quantity
AQ2W-AC2AAAD Surf Wall,Anlg,CO2 2%RH,OLED
$670.80 /

EA

AQ2W-AC2AAADP Surf Wall,Anlg,CO2,2%RH No Tmp,OLED,PIR
$717.60 /

EA

AQ2W-AC2AABD Surf Wall,Anlg,CO2,2%RH Tmp Xmit,OLED
$670.80 /

EA

AQ2W-AC2AABDP Surf Wall,Anlg,CO2,2%RH,PIR Tmp Xmit,OLED
$717.60 /

EA

AQ2W-AC2AAED Surf Wall,Anlg,CO2,2%RH 10K T2,OLED
$702.00 /

EA

AQ2W-AC2AAEDC Surf Wall,Anlg,CO2,2%RH 10K T2,OLED,1K Sld
$723.84 /

EA

AQ2W-AC2AAEDCO Surf Wall,Anlg,CO2,2%RH 10K T2,OLED,1K Sld,O/R PB
$733.20 /

EA

AQ2W-AC2AAEDP Surf Wall,Anlg,CO2,2%RH 10K T2,OLED,PIR
$748.80 /

EA

AQ2W-AC2AAFD Surf Wall,Anlg,CO2,2%RH 10K T3,OLED
$702.00 /

EA

AQ2W-AC2AAFDCO Surf Wall,Anlg,CO2,2%RH 10K T3,OLED,1K Sld,O/R PB
$733.20 /

EA

All prices shown are excluding tax unless otherwise specified.
